ARG11145
anti-Rhodopsin antibody [B630]
anti-Rhodopsin antibody [B630] for ICC/IF,IHC-Frozen sections,Western blot and Human,Mouse,Rat,Cow,Horse,Pig
概述
| 产品描述 | Mouse Monoclonal antibody [B630] recognizes Rhodopsin |
|---|---|
| 反应物种 | Hu, Ms, Rat, Cow, Hrs, Pig |
| 应用 | ICC/IF, IHC-Fr, WB |
| 宿主 | Mouse |
| 克隆 | Monoclonal |
| 克隆号 | B630 |
| 同位型 | IgG1 |
| 靶点名称 | Rhodopsin |
| 抗原物种 | Bovine |
| 抗原 | Purified bovine rhodopsin. |
| 偶联标记 | Un-conjugated |
| 別名 | Rhodopsin; Opsin-2; CSNBAD1; RP4; OPN2 |
应用说明
| 应用建议 |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| 应用说明 | * The dilutions indicate recommended starting dilutions and the optimal dilutions or concentrations should be determined by the scientist. | ||||||||
| 实际分子量 | ~ 33 kDa |
属性
| 形式 | Liquid |
|---|---|
| 纯化 | Purified |
| 缓冲液 | PBS, 5 mM Sodium azide and 50% Glycerol. |
| 抗菌剂 | 5 mM Sodium azide |
| 稳定剂 | 50% Glycerol |
| 浓度 | 1 mg/ml |
| 存放说明 | For continuous use, store undiluted antibody at 2-8°C for up to a week. For long-term storage, aliquot and store at -20°C. Storage in frost free freezers is not recommended. Avoid repeated freeze/thaw cycles. Suggest spin the vial prior to opening. The antibody solution should be gently mixed before use. |
| 注意事项 | For laboratory research only, not for drug, diagnostic or other use. |
生物信息
| 数据库连接 | |
|---|---|
| 基因名称 | RHO |
| 全名 | rhodopsin |
| 背景介绍 | The protein encoded by this gene is found in rod cells in the back of the eye and is essential for vision in low-light conditions. The encoded protein binds to 11-cis retinal and is activated when light hits the retinal molecule. Defects in this gene are a cause of congenital stationary night blindness. [provided by RefSeq, Aug 2017] |
| 生物功能 | Photoreceptor required for image-forming vision at low light intensity (PubMed:8107847, PubMed:7846071). Required for photoreceptor cell viability after birth (PubMed:2215617, PubMed:12566452). Light-induced isomerization of the chromophore 11-cis-retinal to all-trans-retinal triggers a conformational change that activates signaling via G-proteins (PubMed:8107847, PubMed:28524165, PubMed:26200343, PubMed:28753425). Subsequent receptor phosphorylation mediates displacement of the bound G-protein alpha subunit by the arrestin SAG and terminates signaling (PubMed:28524165, PubMed:26200343). [UniProt] |
| 细胞定位 | Membrane; Multi-pass membrane protein. Cell projection, cilium, photoreceptor outer segment. Note=Synthesized in the inner segment (IS) of rod photoreceptor cells before vectorial transport to disk membranes in the rod outer segment (OS) photosensory cilia. [UniProt] |
| 预测分子量 | 39 kDa |
| 翻译后修饰 | Phosphorylated on some or all of the serine and threonine residues present in the C-terminal region. Contains one covalently linked retinal chromophore. [UniProt] |
检测图片 (3) Click the Picture to Zoom In
-
ARG11145 anti-Rhodopsin antibody [B630] IHC-Fr image

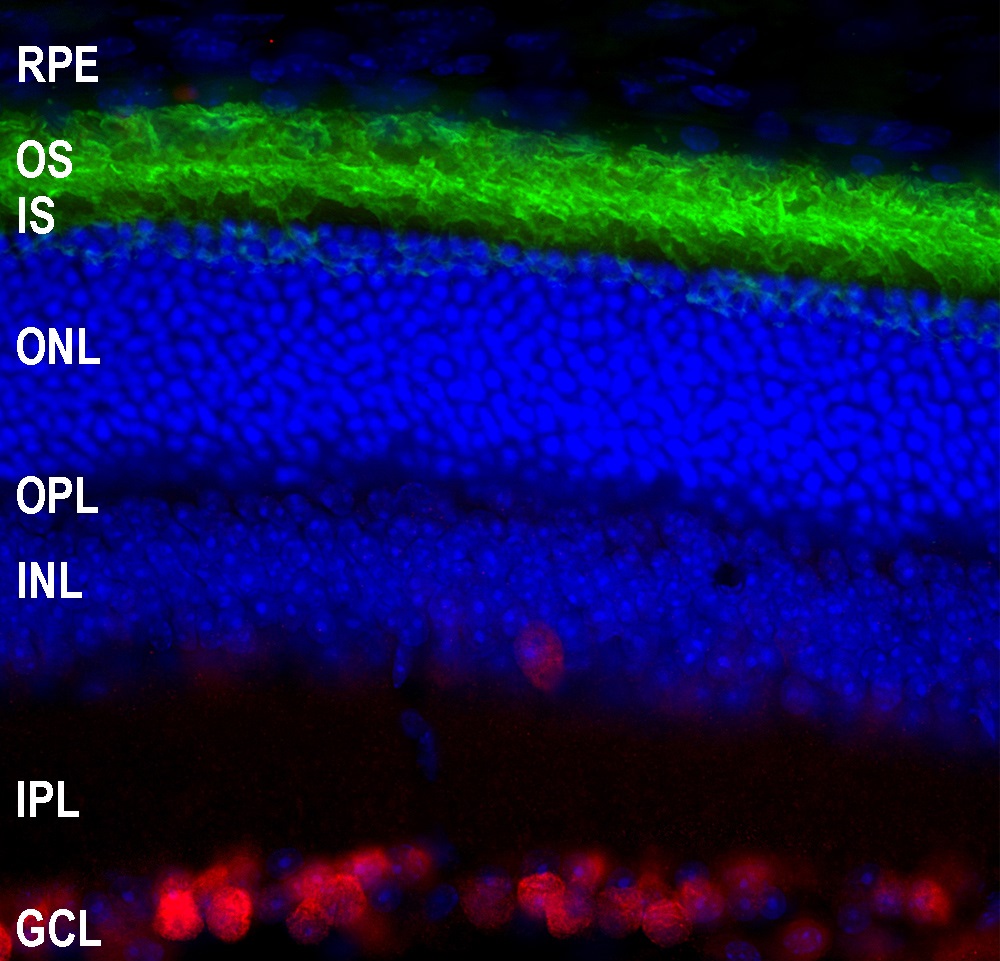

Immunohistochemistry: Frozen section of Mouse retina tissue stained with ARG11145 anti-Rhodopsin antibody [B630] (green) at 1:2000 dilution, and co-stained with ARG10712 anti-FOX3 / NeuN antibody (red) at 1:5000 dilution. Hoechst (blue) for nuclear staining.
-
ARG11145 anti-Rhodopsin antibody [B630] WB image

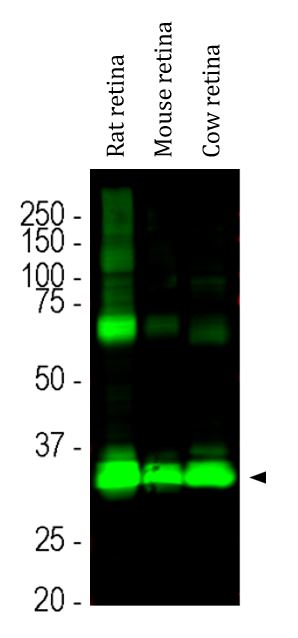

Western blot: Rat retina, Mouse retina and Cow retina lysates stained with ARG11145 anti-Rhodopsin antibody [B630] at 1:5000 dilution.
The strong band at 35 kDa corresponds to rhodopsin protein. Bands at about 70 kDa and 140 kDa are presumably aggregated forms of rhodopsin.
-
ARG11145 anti-Rhodopsin antibody [B630] IHC-Fr image

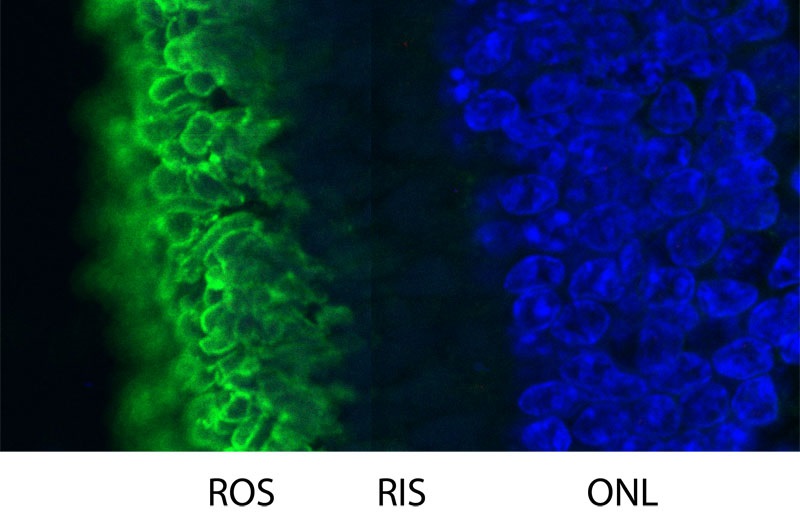

Immunohistochemistry: Frozen section of Pig retinal tissue stained with ARG11145 anti-Rhodopsin antibody [B630] (green). Hoechst (blue) for nuclear staining.
Rhodopsin is most abundant in the rod outer segments (ROS) of retina, clearly localized in rod cell membranes. The rod inner segments (RIS) and rod nuclei in the outer nuclear layer (ONL) are also seen in this image.
