ARG83523

arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1)

arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA 试剂盒 (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) for ELISA and Mouse

内含物

货号 内含物名称 包装 温度
ARG83523-01 Antibody Coated Microplate 8 X 12 strips 4°C
ARG83523-02 Standards Mixture 3 vials 4°C
ARG83523-03 10X Antibody Conjugate Mixture 1.2 ml ≤ -20°C
ARG83523-04 40X HRP-Streptavidin solution 300 µl 4°C
ARG83523-05 Standard/Sample Diluent Buffer 30 ml 4°C
ARG83523-06 Antibody Diluent Buffer 35 ml 4°C
ARG83523-07 20X Wash Buffer 45 ml 4°C
ARG83523-08 TMB substrate 12 ml 4°C (protect from light)
ARG83523-09 STOP solution 12 ml 4°C
ARG83523-10 Plate sealer 3 strips Room temperature

概述

产品描述 ARG83523 arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) is an Enzyme Immunoassay kit for the quantification of IFN gamma, IL4, IL6, IL10, IL12(p70), GM-CSF, TNF alpha, MCP1 in Mouse serum, plasma and cell culture supernatants.

See all Multiplex ELISA kits
反应物种 Ms
应用 ELISA
靶点名称 M1/M2/MDSC Cytokine
偶联标记 HRP
偶联标记说明 Substrate: TMB and read at 450 nm.
灵敏度 IFN gamma: 15.6 pg/ml
IL4: 15.6 pg/ml
IL6: 31.25 pg/ml
IL10: 7.8 pg/ml
IL12: 31.25 pg/ml
GM-CSF: 7.8 pg/ml
TNF alpha: 15.6 pg/ml
MCP1: 3.9 pg/ml
样品类型 Serum, plasma and cell culture supernatants.
标准范围 IFN gamma: 31.25 - 1000 pg/ml
IL4: 31.25 - 1000 pg/ml
IL6: 62.5 - 2000 pg/ml
IL10: 15.6 - 500 pg/ml
IL12: 62.5 - 2000 pg/ml
GM - CSF: 15.6 - 500 pg/ml
TNF alpha: 31.25 - 1000 pg/ml
MCP1: 7.8 - 250 pg/ml
样本量 50 µl

应用说明

检测时间 4.5 hours

属性

形式 96 well
存放说明 Store components at 4°C or -20°C. Keep microplate wells sealed in a dry bag with desiccants. Do not expose test reagents to heat, sun or strong light during storage and usage. Please refer to the product user manual for detail temperatures of the components.
注意事项 For laboratory research only, not for drug, diagnostic or other use.

生物信息

基因名称 IFN gamma; IL4; IL6; IL10; IL12; GM-CSF; TNF alpha; MCP1
产品亮点 Related news:
M1/M2 Cytokine Multiplex ELISA Kit is launched;

检测图片 (9) Click the Picture to Zoom In

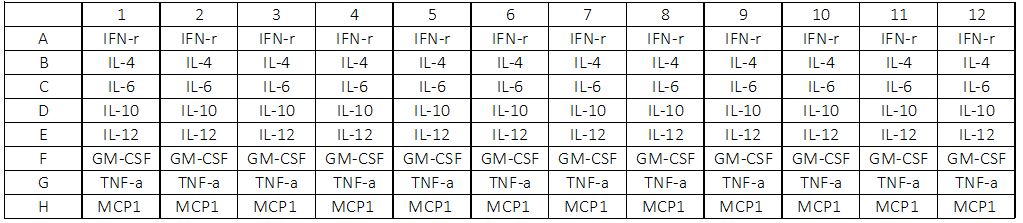

  • Antibodies Coating Pattern In Microtiter Plate of arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IGM-CSF, IFN gamma, IL4, IL6, IL10, IL12, MCP1)

  • arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) standard curve image

    arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) results of a typical standard for Mouse IFN gamma run with optical density reading at 450 nm.

  • arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) standard curve image

    arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) results of a typical standard for Mouse IL4 run with optical density reading at 450 nm.

  • arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) standard curve image

    arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) results of a typical standard for Mouse IL6 run with optical density reading at 450 nm.

  • arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) standard curve image

    arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) results of a typical standard for Mouse IL10 run with optical density reading at 450 nm.

  • arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) standard curve image

    arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) results of a typical standard for Mouse IL12 run with optical density reading at 450 nm.

  • arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) standard curve image

    arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) results of a typical standard for Mouse GM-CSF run with optical density reading at 450 nm.

  • arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) standard curve image

    arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) results of a typical standard for Mouse TNF alpha run with optical density reading at 450 nm.

  • arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) results of a typical standard for Mouse MCP1 run with optical density reading at 450 nm.

    arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) results of a typical standard for Mouse MCP1 run with optical density reading at 450 nm.

Title Download Link
ARG83523 arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1, TNF alpha) User manual download icon Download
